INOX AISI304 Cladding Fixing Systems,Dry Hanging System,Dry Hanger,Stone Anchorage System,Dry-Hang Fixing

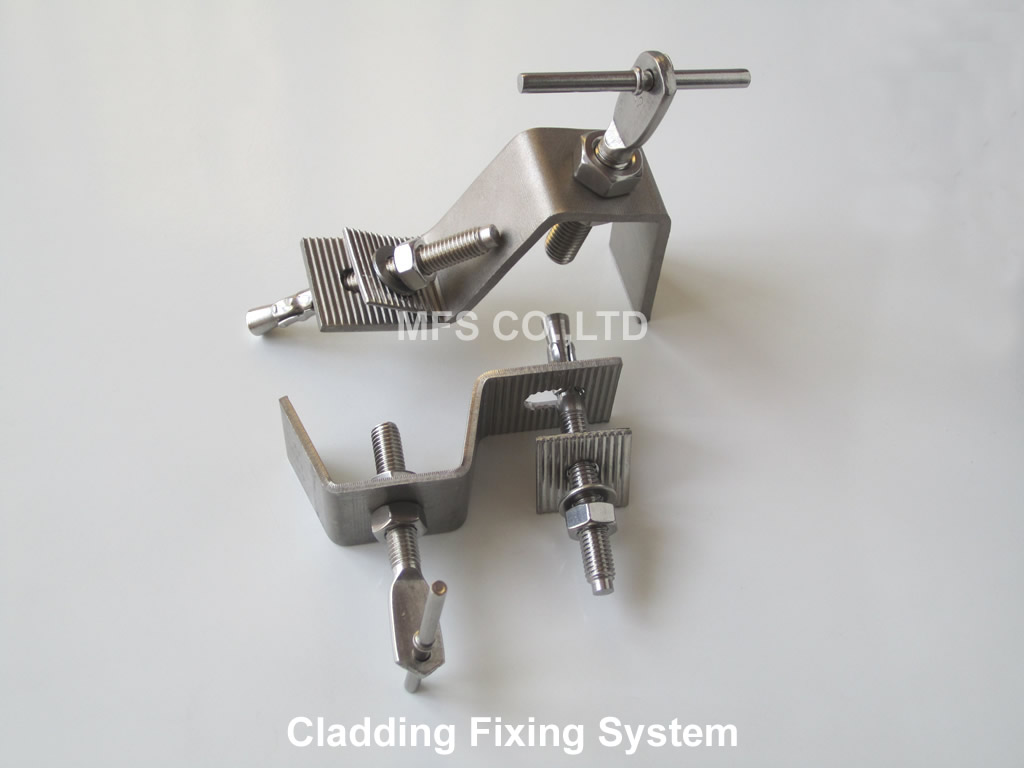

This Cladding Fixing System contains Ext Arm(Flat Head Bolt),Flange Pin,Hex Nut,Serrated Washer,Wedge Anchor and Z Anchor.The material is INOX AISI304-A2/AISI316-A4
Z Brackets are one of the most preferred fitting elements used in exterior construction of the buildings as they can easily be mounted on the wall.
*Suitable for concrete walls.Z Anchors are fixed directly on to concrete walls with through bolts.Indirect fixing on to sub channel system with hex bolts.
*In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half the weight of the slabs above.
*In vertical joint installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab. Anchors on the top are restraint anchors holding the slabs and restrainting against wind suction and pressure.
*Three dimensional adjustability -Quick and easy fixing.
*Recommended projection size between 55mm to 125mm and loads up to 700N.
MFS CO.,LTD is professional in producing Cladding Fixing System since 1995,and our Dry Hang Fixing Systems are exported to Korea,Mideast,Europ and America.If you need more details,please connect me.
